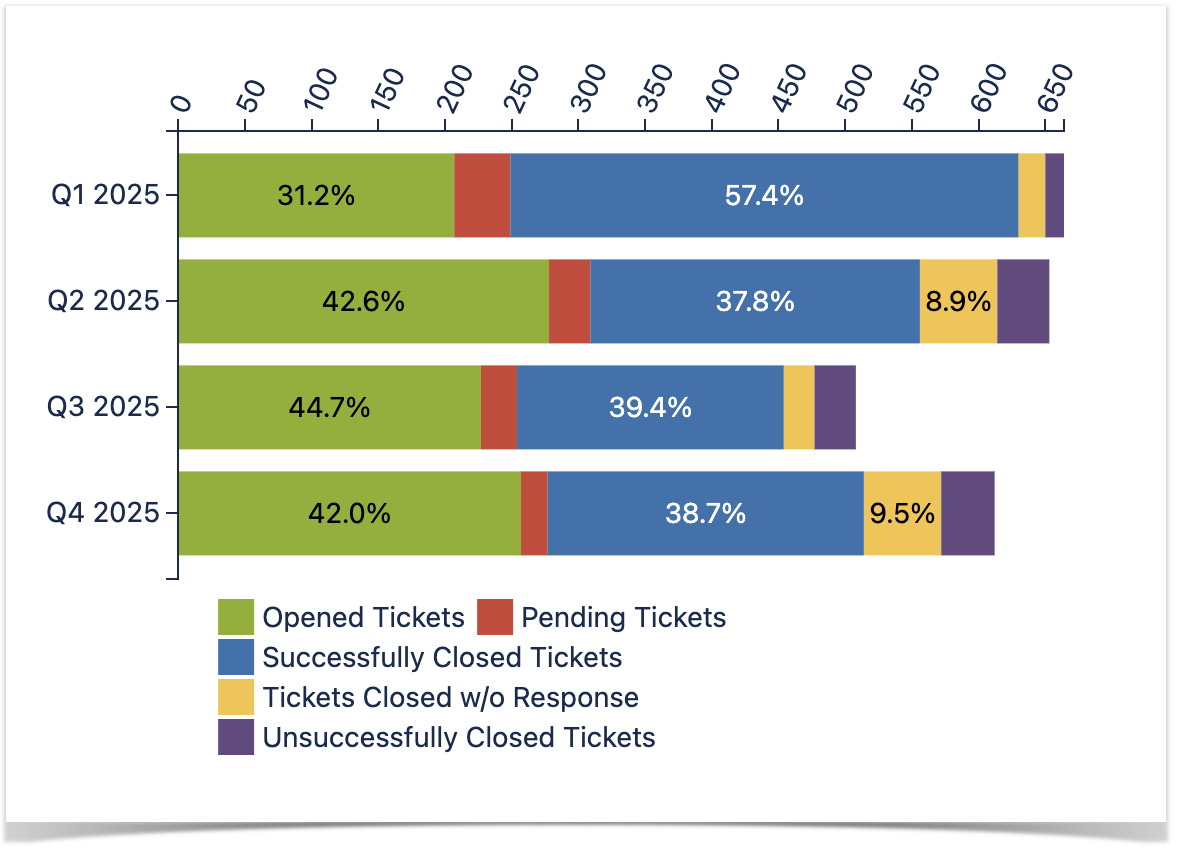

Column, Stacked Column, Bar, Stacked Bar chart types

Select the chart type

To select the chart type in the page view mode:

1. Insert the Chart from Table macro.
2. Hover over the chart controls on the right of the table.
3. Locate the Type option and select the chart type. The chart will be automatically re-generated.
4. To save the modifications in the macro body, click the cogwheel icon and select Save changes .

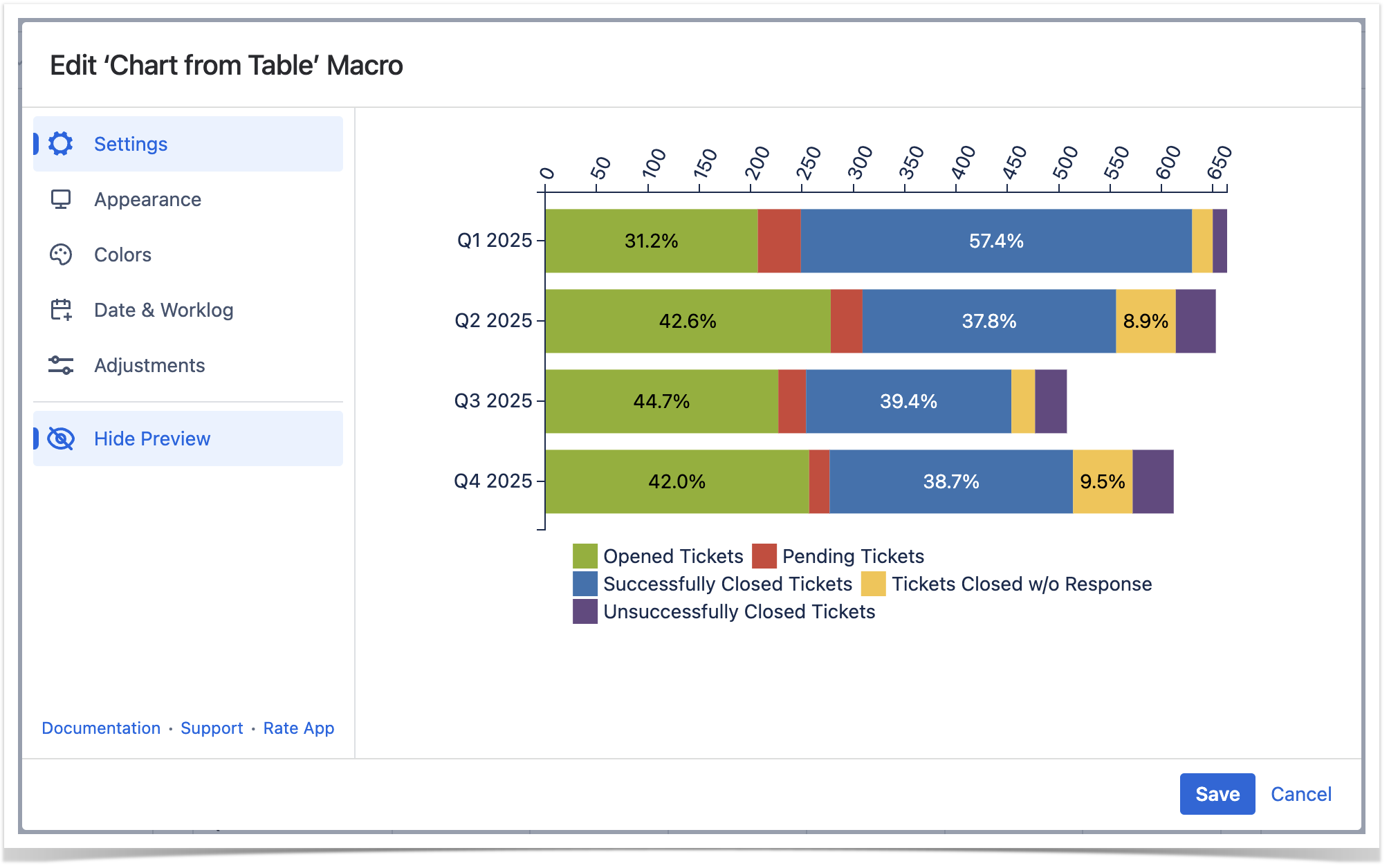

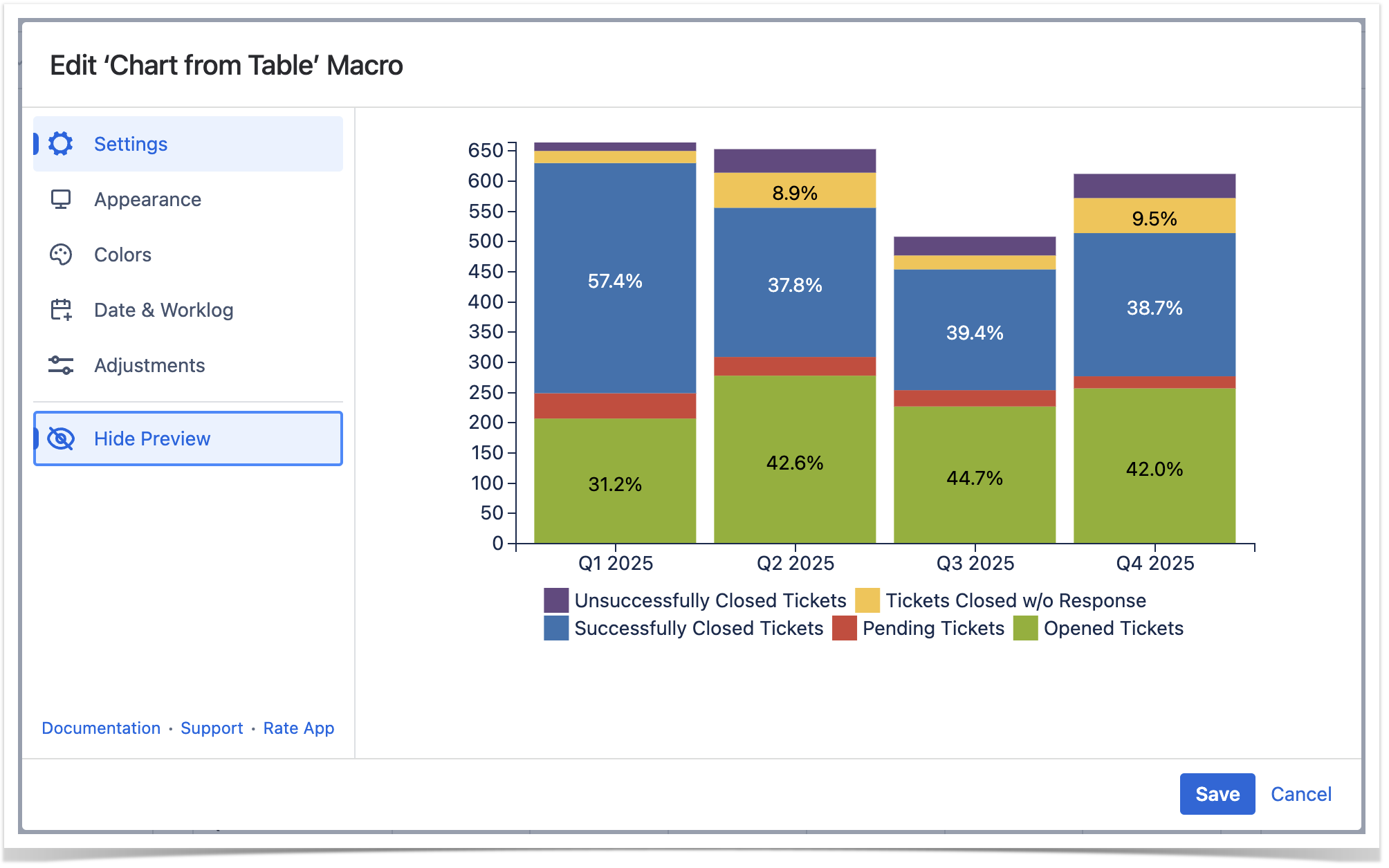

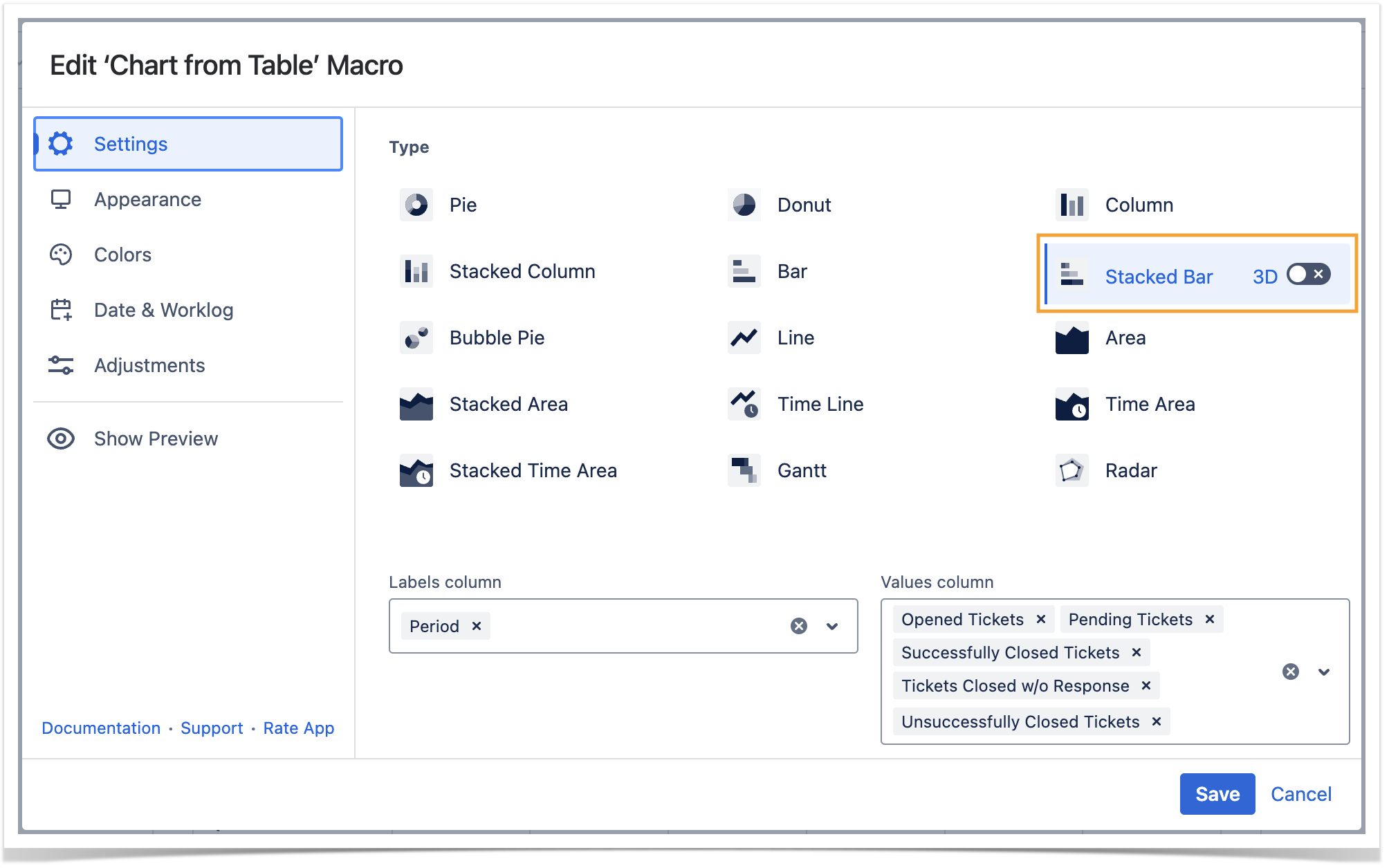

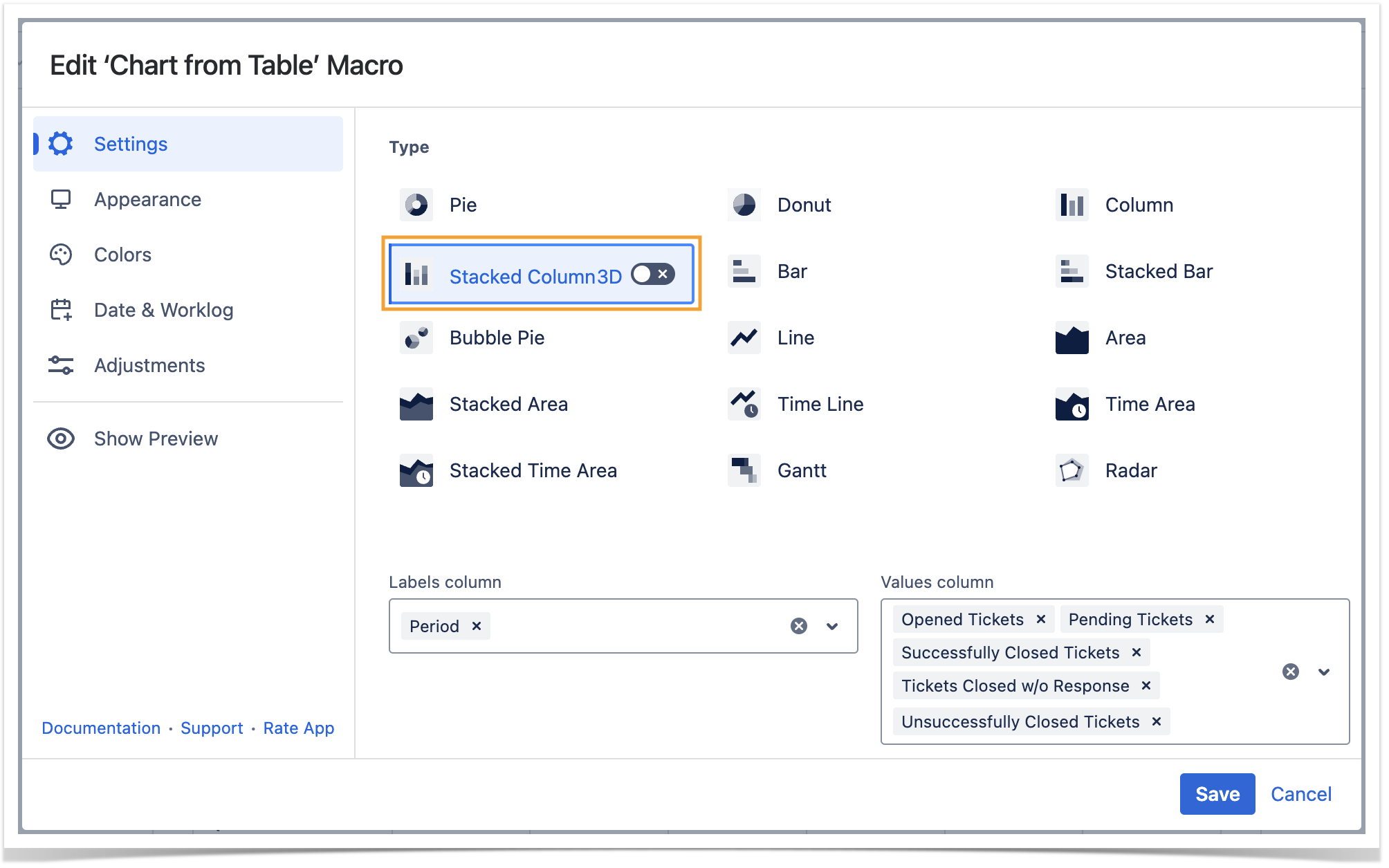

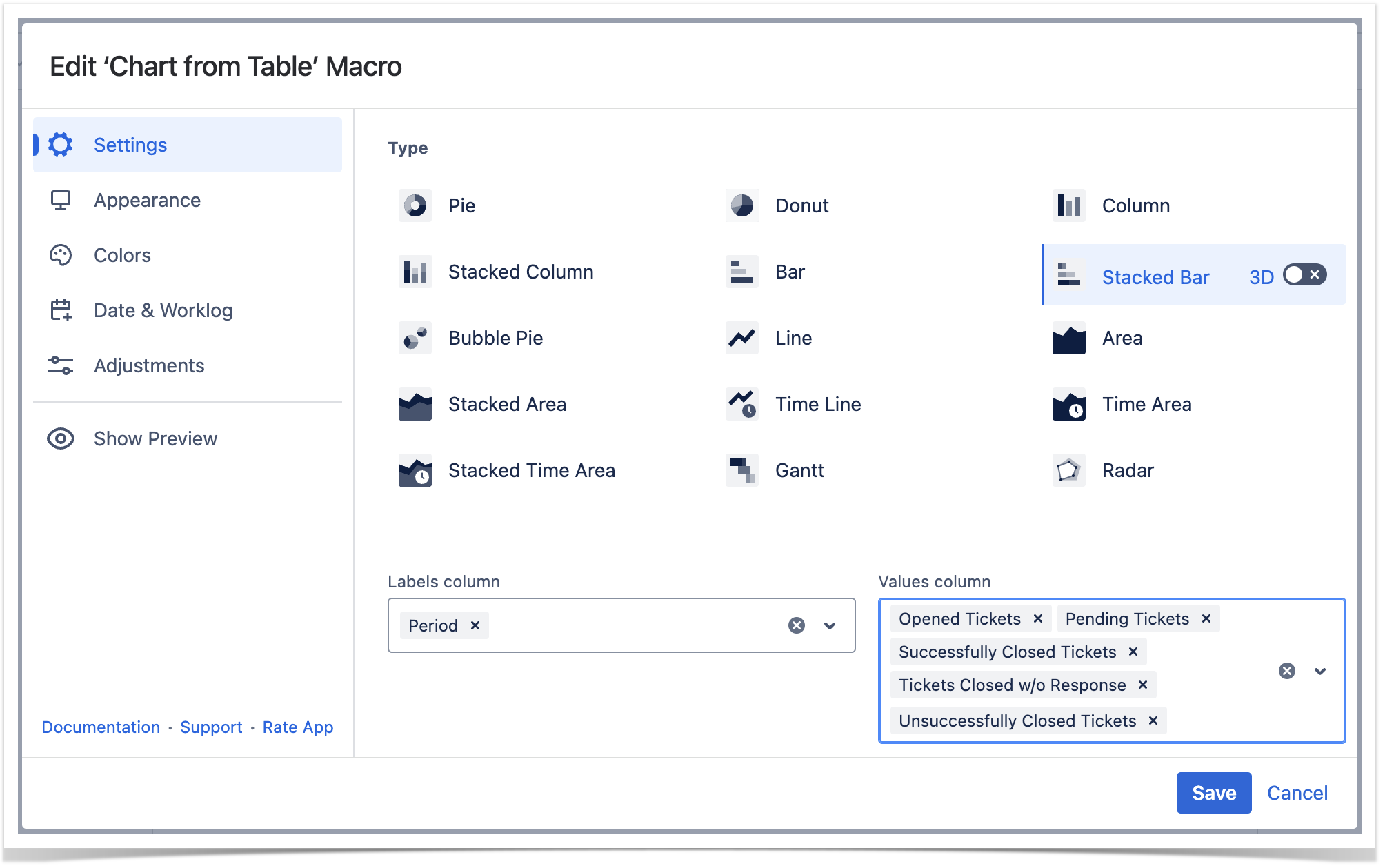

To select the chart type in the macro browser:

1. Switch the page to the edit mode.
2. Insert the Chart from Table macro and paste the table within the macro body.
3. Select the macro and click Edit.
4. Locate the Type option in the Settings tab and select the chart type.
5. Save the macro and the page.

Select data series

Labels column  - the column containing  labels  for data values.

Values column  - the column or columns containing  numerical values  for chart generation.

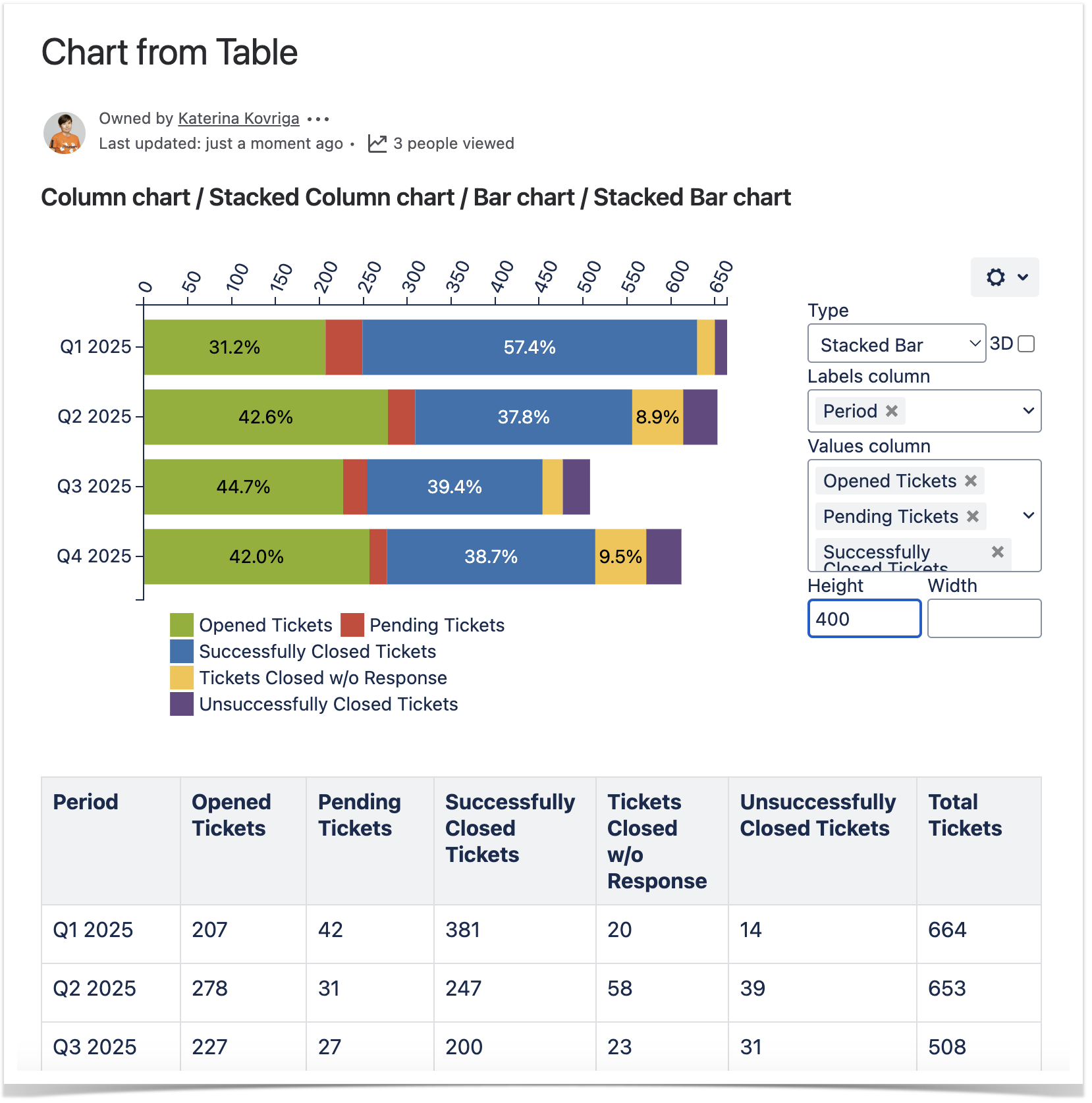

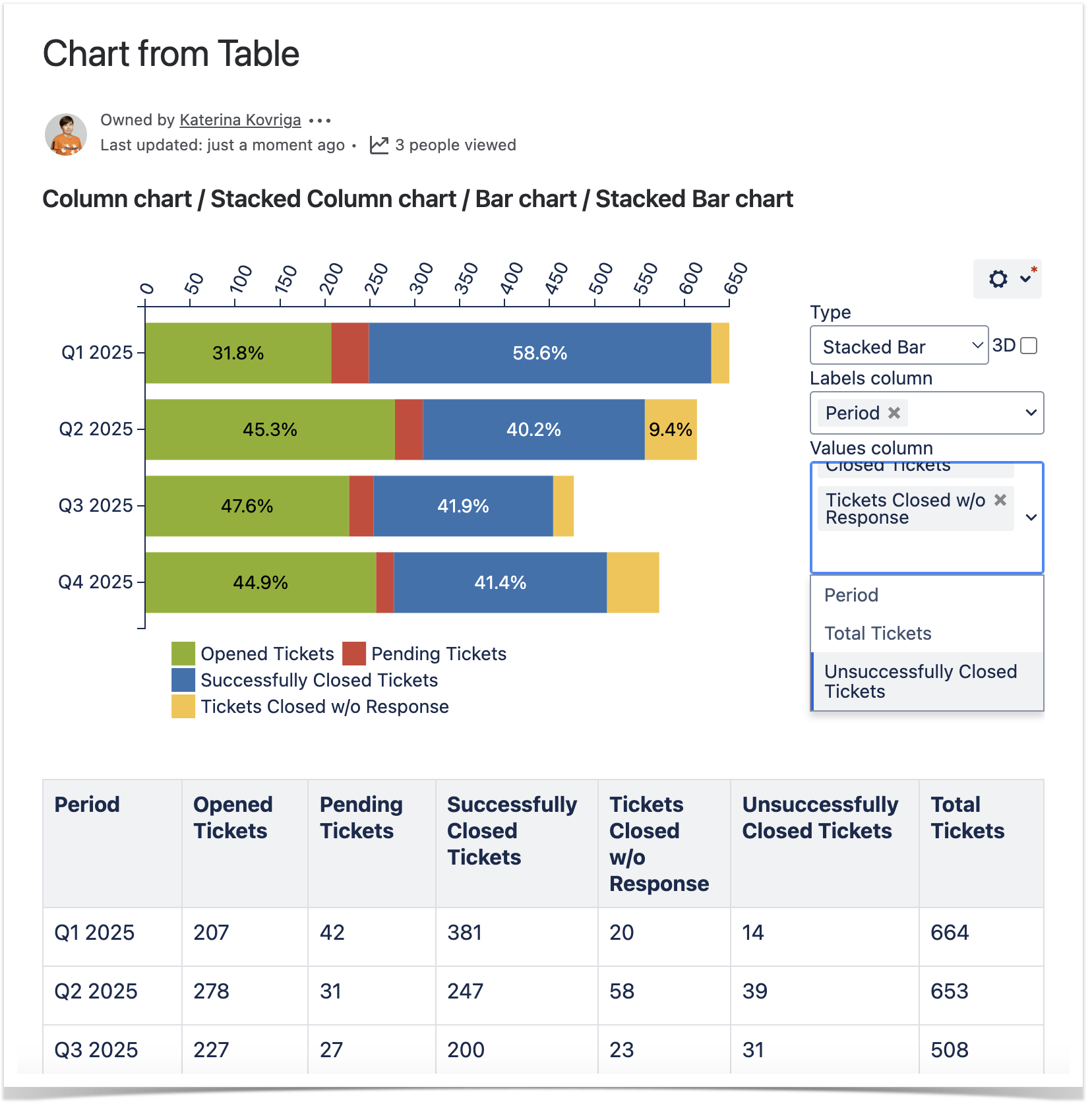

To select data series in the page view mode:

1. Insert the Chart from Table macro.
2. Hover over the chart controls on the right of the table.
3. Locate the  Labels column  and  Values column  options and select the table columns containing data for chart generation. The chart will be automatically re-generated.
4. To save the modifications in the macro body, click the cogwheel icon and select Save changes .

To select data series in the macro browser:

1. Switch the page to the edit mode.
2. Insert the Chart from Table macro and paste the table within the macro body.
3. Select the macro and click Edit.
4. Locate  the  Labels column  and  Values column  options in the Settings tab and select the table columns containing data for chart generation.
5. Save the macro and the page.

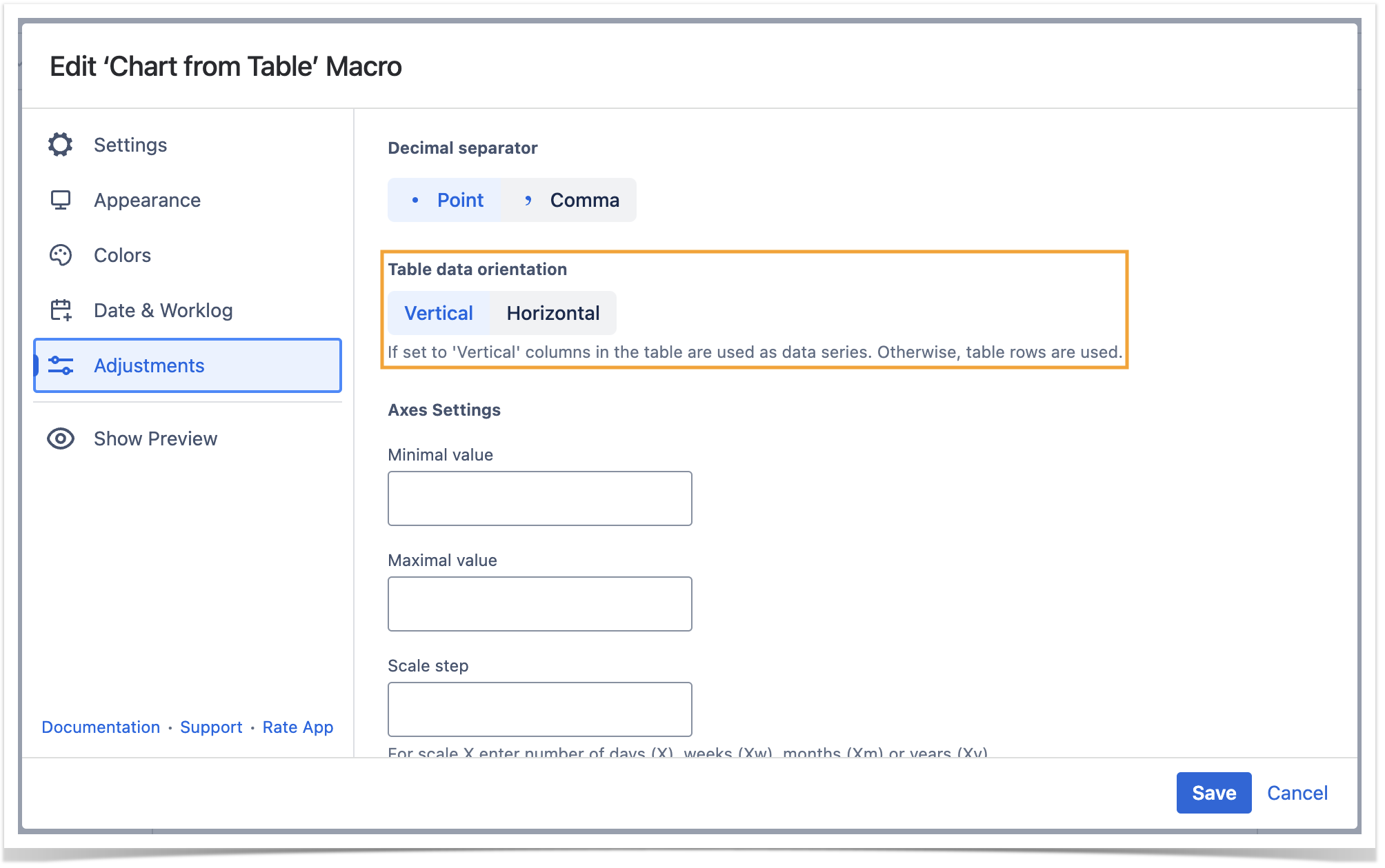

Set the table data orientation

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate the Table data orientation option.
5. Select the Vertical or Horizontal option.
6. Save the macro and the page.

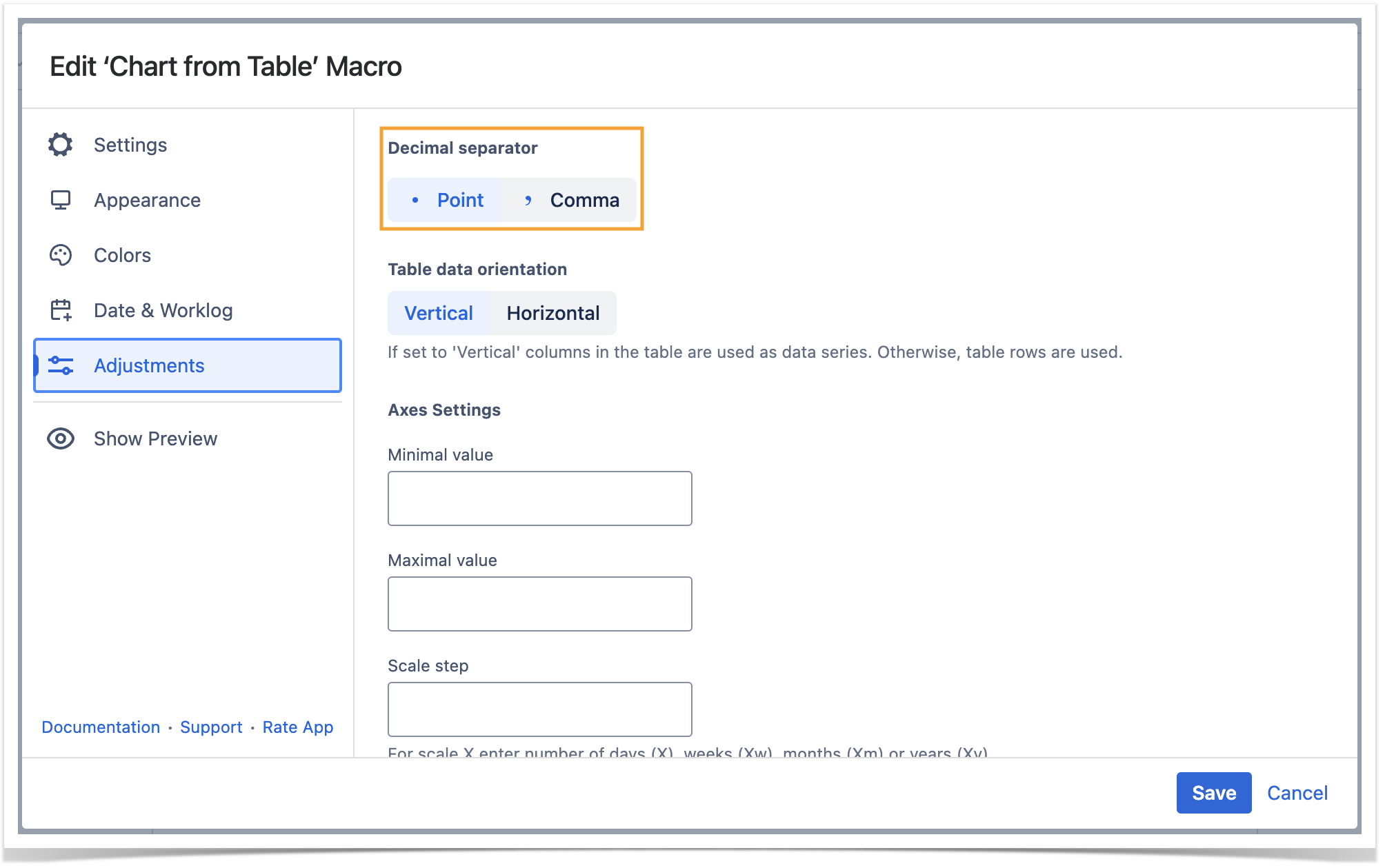

Set the decimal separator

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate the Decimal separator option.
5. Specify the correct decimal separator for numeric values in the source table (point or comma).
6. Save the macro and the page.

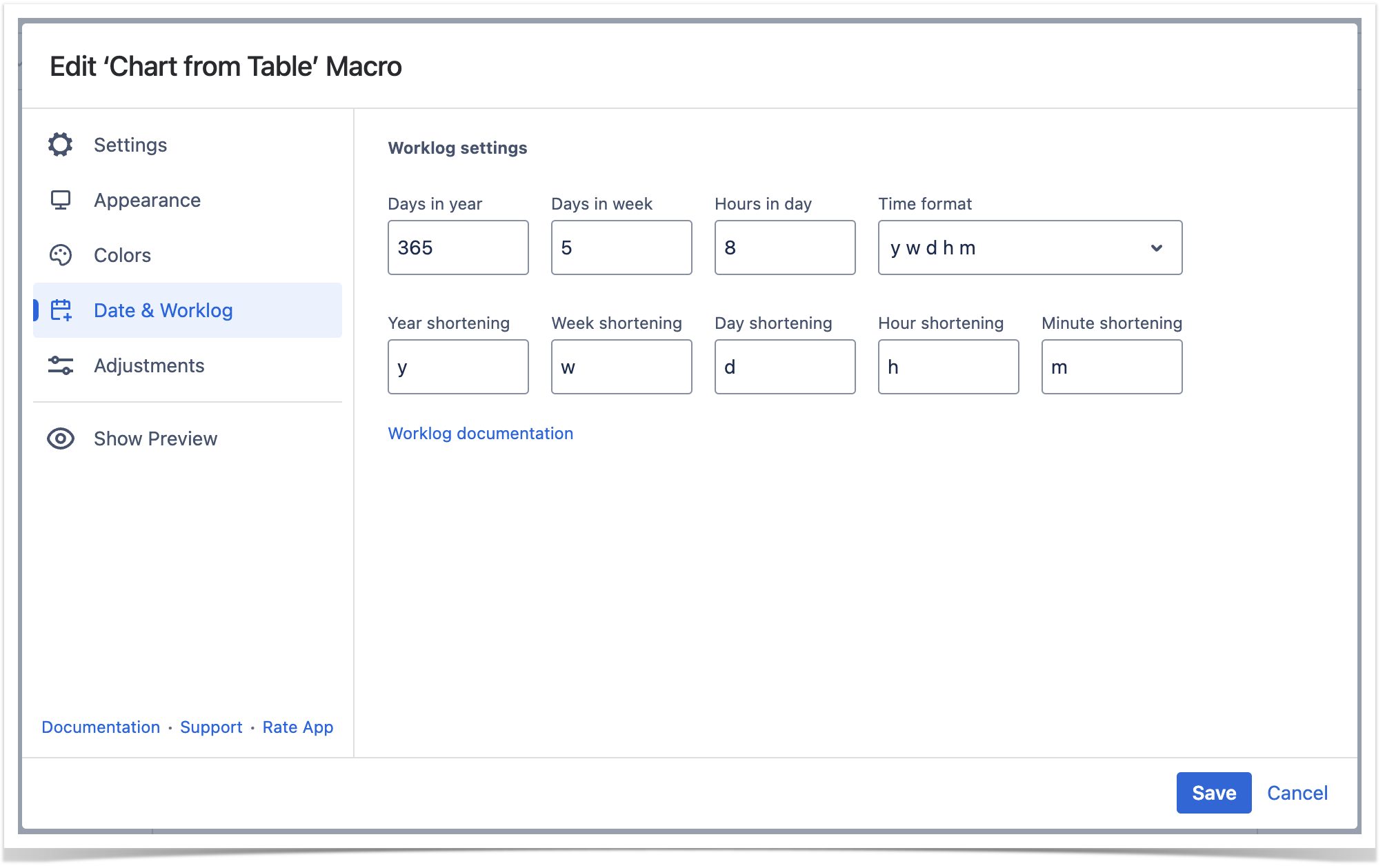

Set the worklog settings

1. Switch the page to the edit mode.
2. Select the macro and click Edit .
3. Switch to the Adjustments tab.
4. Click the Set worklog settings button.
5. In the opened form, define the worklog parameters, as follows:
   1. Days in week - enter the number of business days in a week.
   2. Hours in day - enter the number of working hours in one business day.
   3. Time format - select the used time format in worklog values.
   4. Week shortening - enter the shortening for the week time unit if you use any language different from English.
   5. Day shortening - enter the shortening for the day time unit if you use any language different from English.
   6. Hour shortening - enter the shortening for the hour time unit if you use any language different from English.
   7. Minute shortening - enter the shortening for the minute time unit if you use any language different from English.
6. Save the macro and the page.

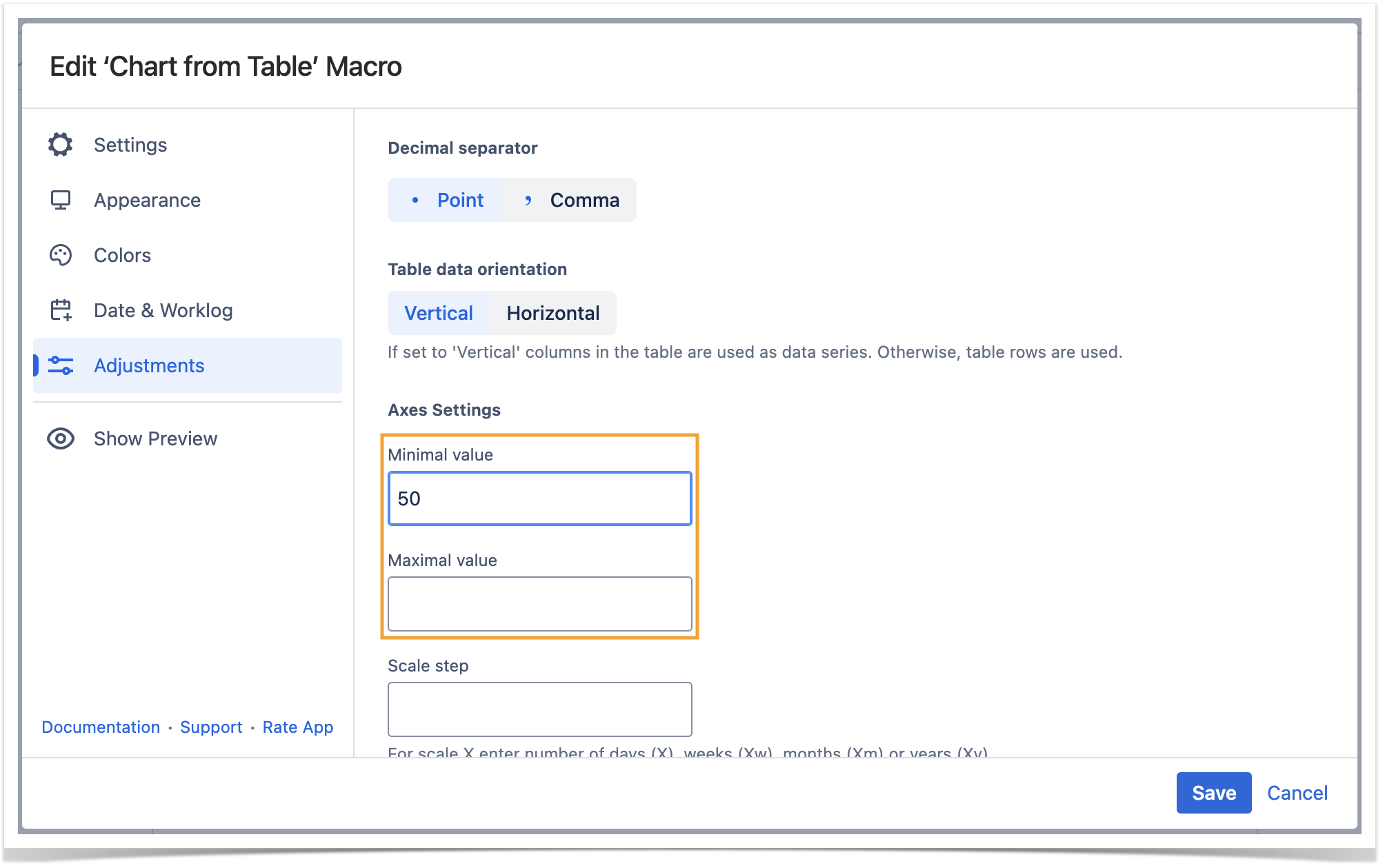

Set the minimal and maximal values

Minimal value  - the minimal value for showing only data values greater than the specified minimal value.

Maximal value  - You can specify the maximal value for showing only data values not greater than the specified maximal value.

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate the Minimal  and  Maximal value  options and set the values.
5. Save the macro and the page.

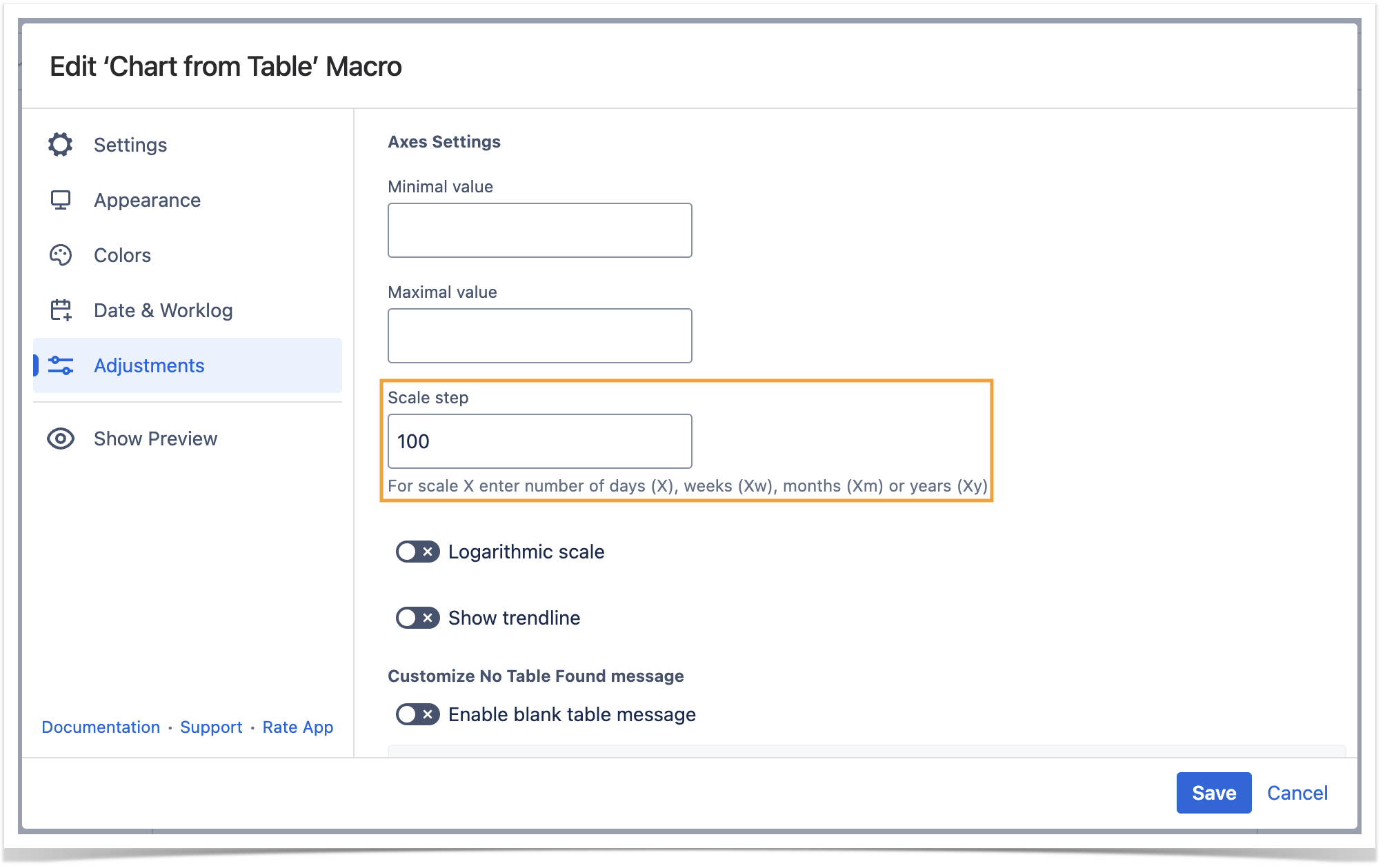

Set the scale step

Scale Step  - the required scale step for showing the numeric values in the chart.

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate the appropriate option depending on the chart type and set the scale step.
5. Save the macro and the page.

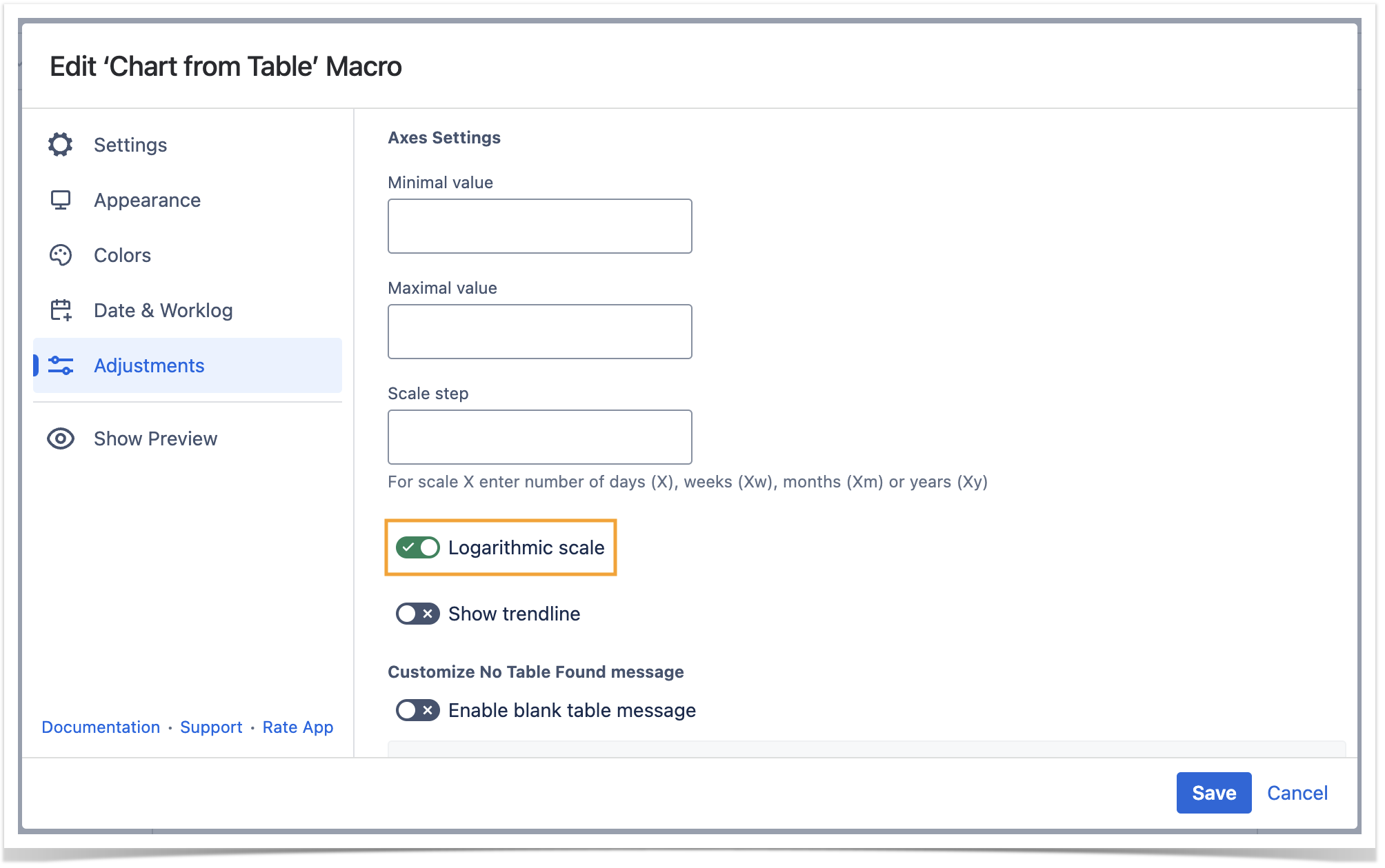

Set the logarithmic scale

Logarithmic Scale  - the option for very small or very large numeric values that cannot be properly aligned on the standard arithmetic scale.

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate the Logarithmic Scale  option and enable the option.
5. Save the macro and the page.

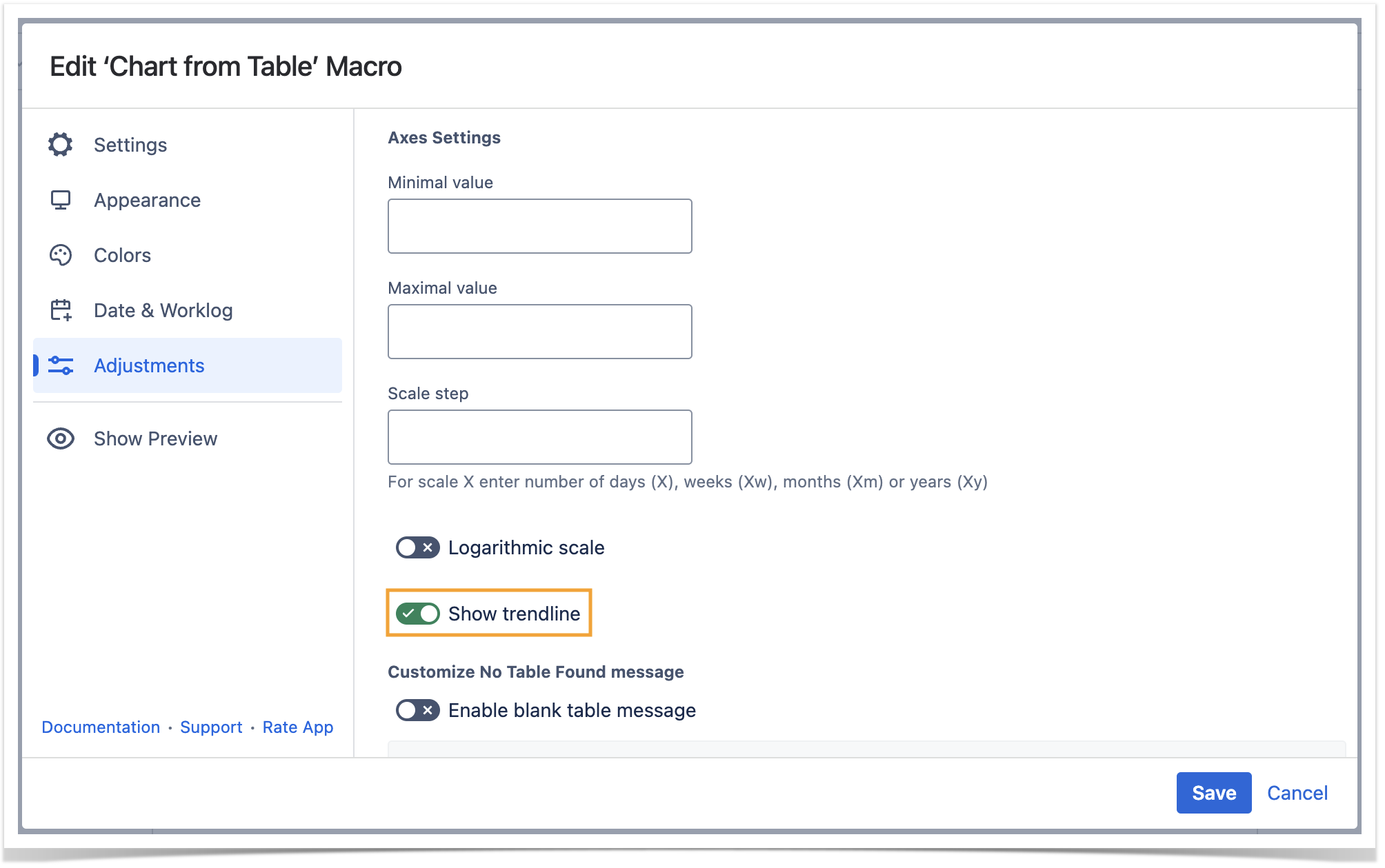

Show trendline

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Adjustments tab.
4. Locate and enable the Show trendline option.
5. Save the macro and the page.

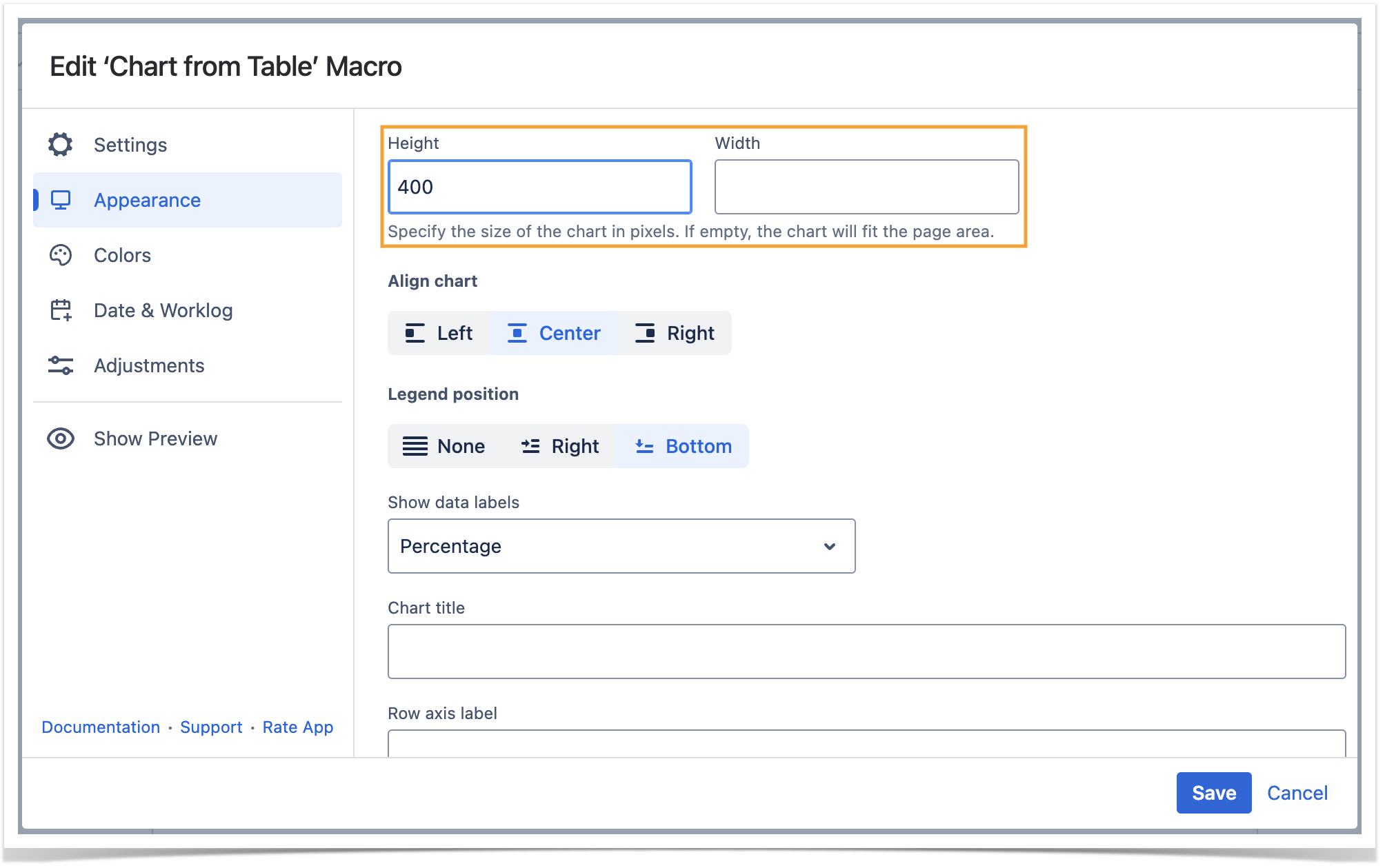

Set the height and width of the chart

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Height and Width fields.
5. Enter the appropriate dimensions of the chart.

6. Save the macro and the page.

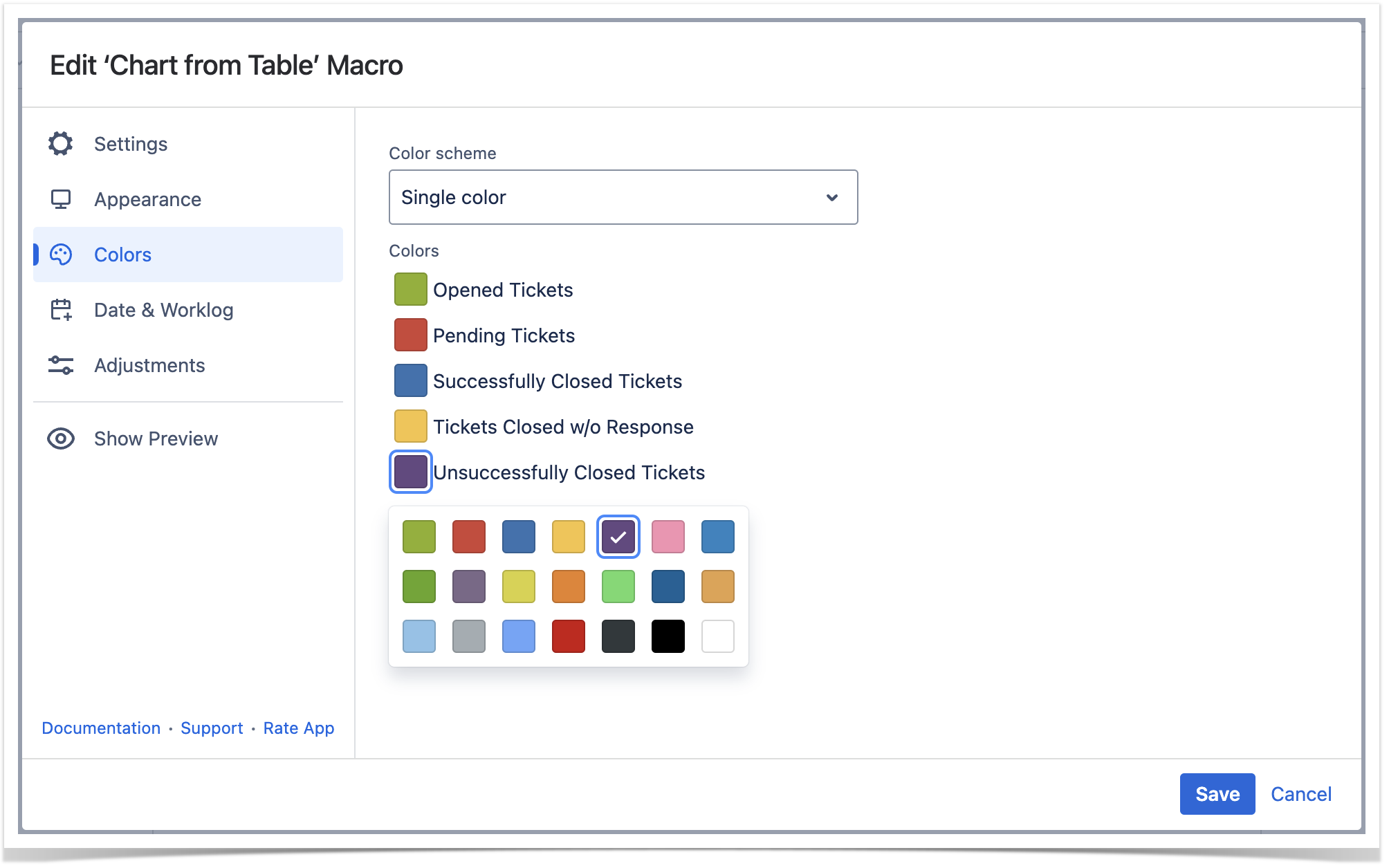

Set colors

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Select colors button and click it.
5. Select the appropriate colors for each label.

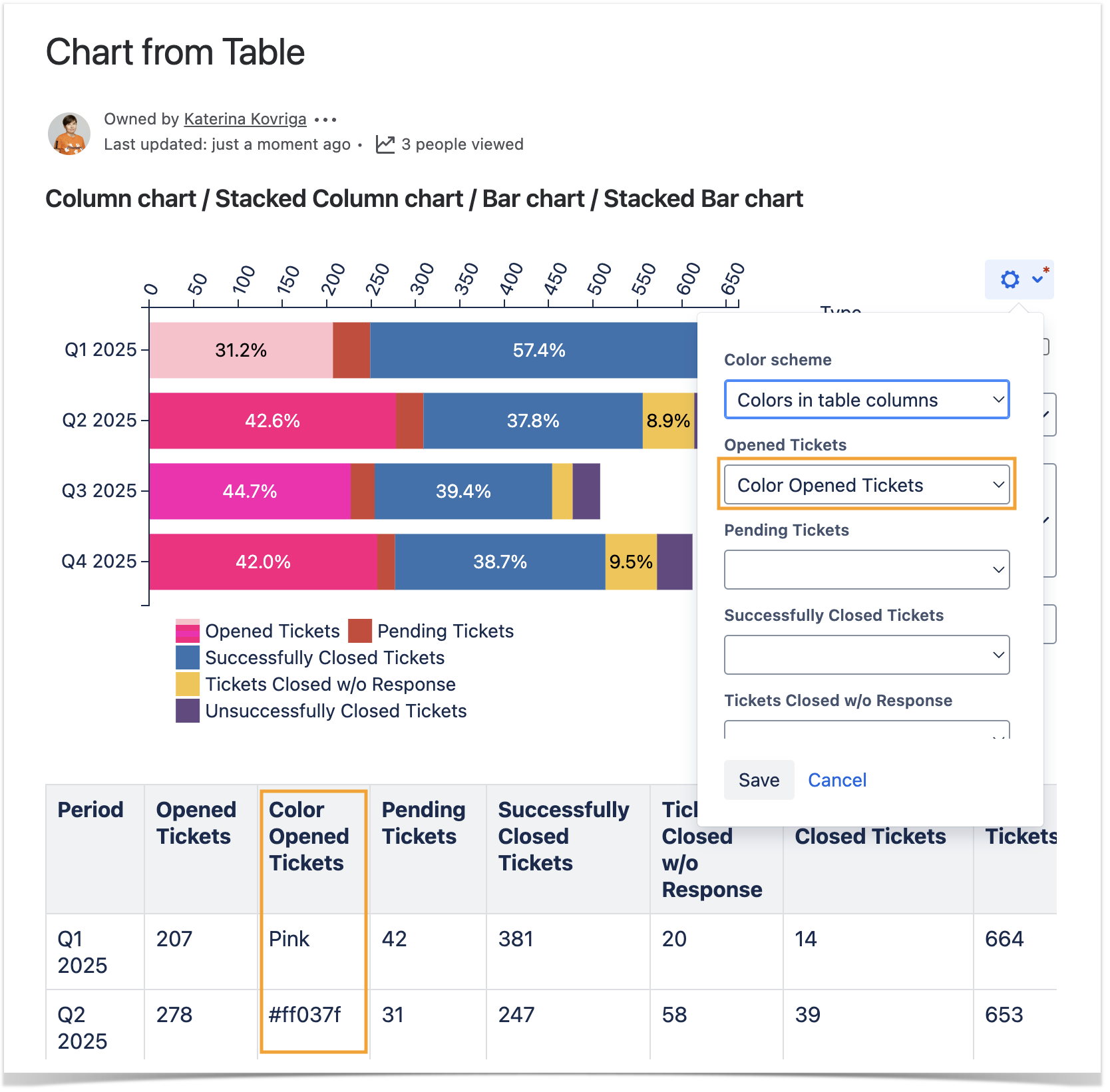

6. To set individual column colors, locate the Color scheme option.
7. Select the Multicolor or Colors in the table columns option.
8. Select the appropriate colors for each column for the Multicolor option.
9. Select the corresponding columns with colors for the Colors in the table columns  option. You can use colors from  this list  or define your own HEX code colors.
10. Save the macro and the page.

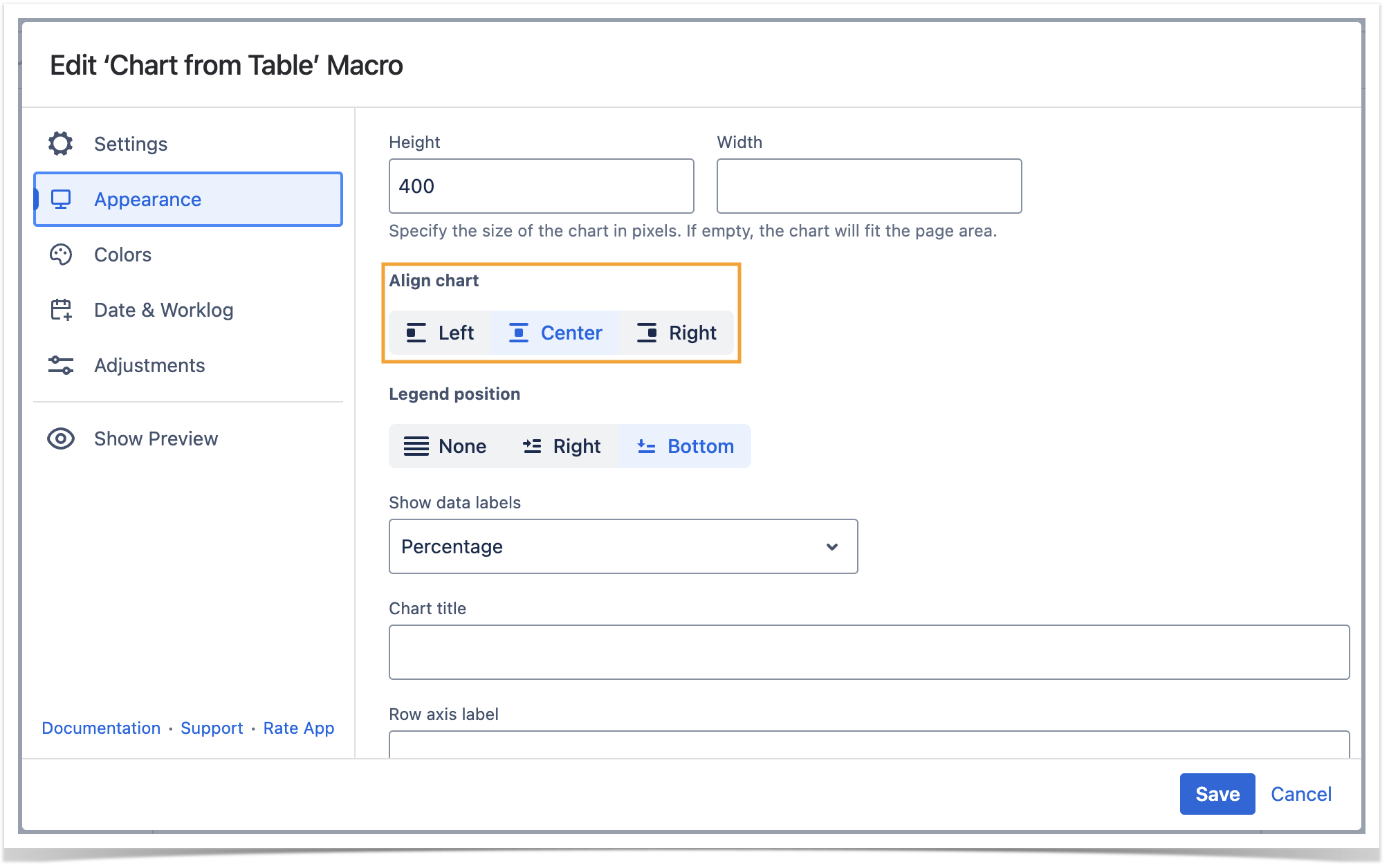

Align chart

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Align chart option.
5. Select the appropriate chart alignment, as follows:
   • Left
   • Center
   • Right
6. Save the macro and the page.

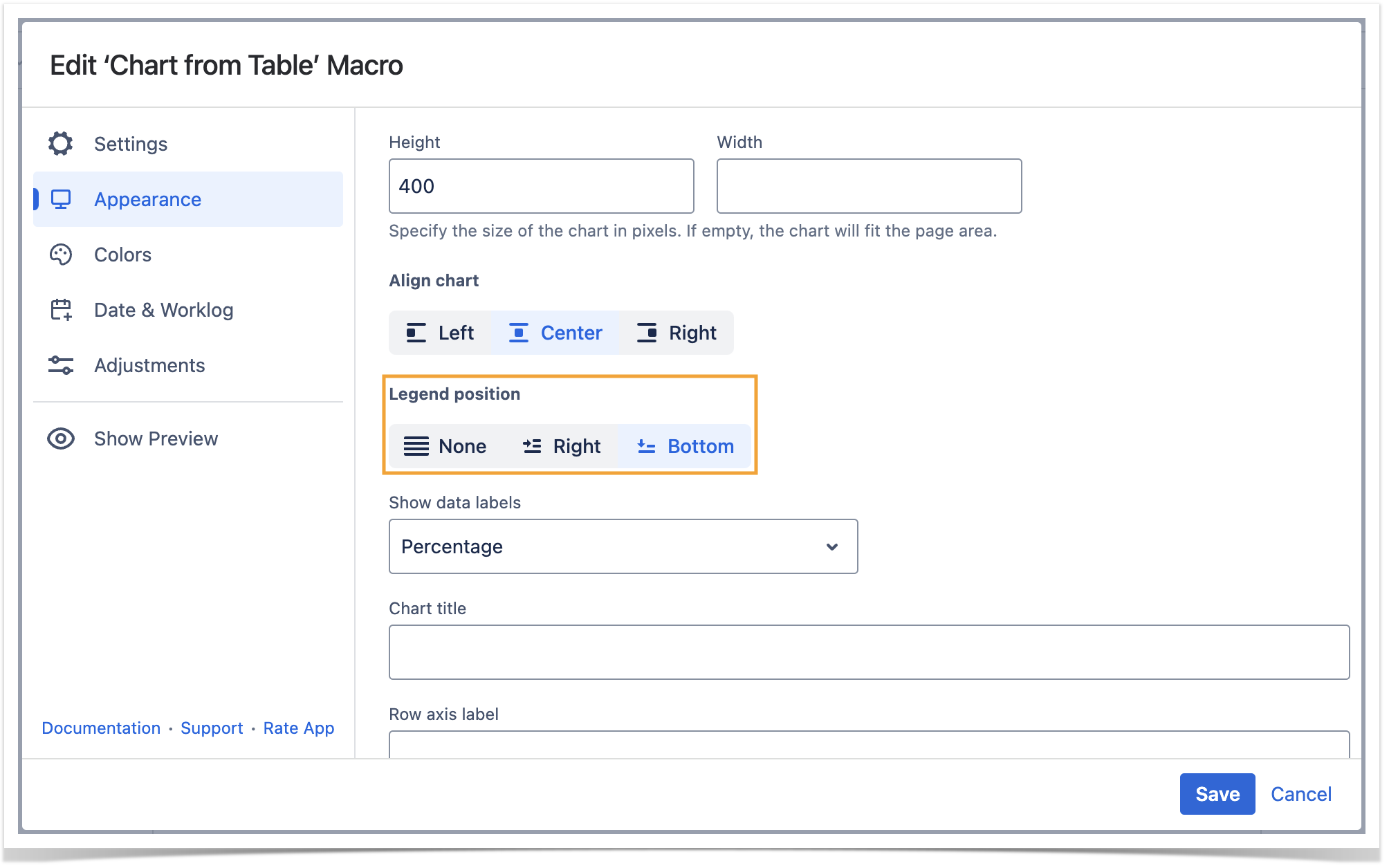

Set the legend position

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Legend Position option.
5. Select the appropriate legend position, as follows:
   • None
   • Right
   • Bottom
6. Save the macro and the page.

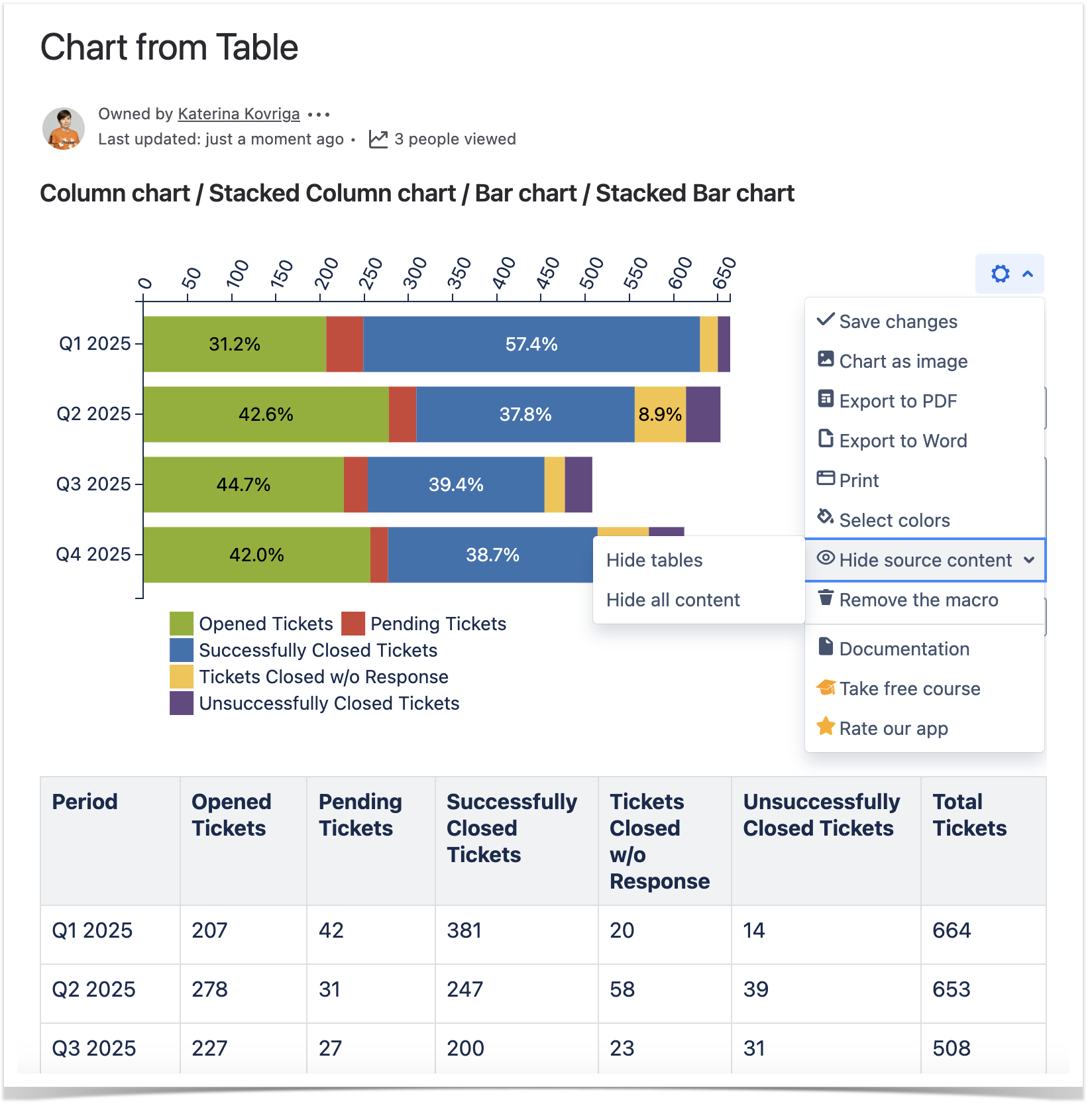

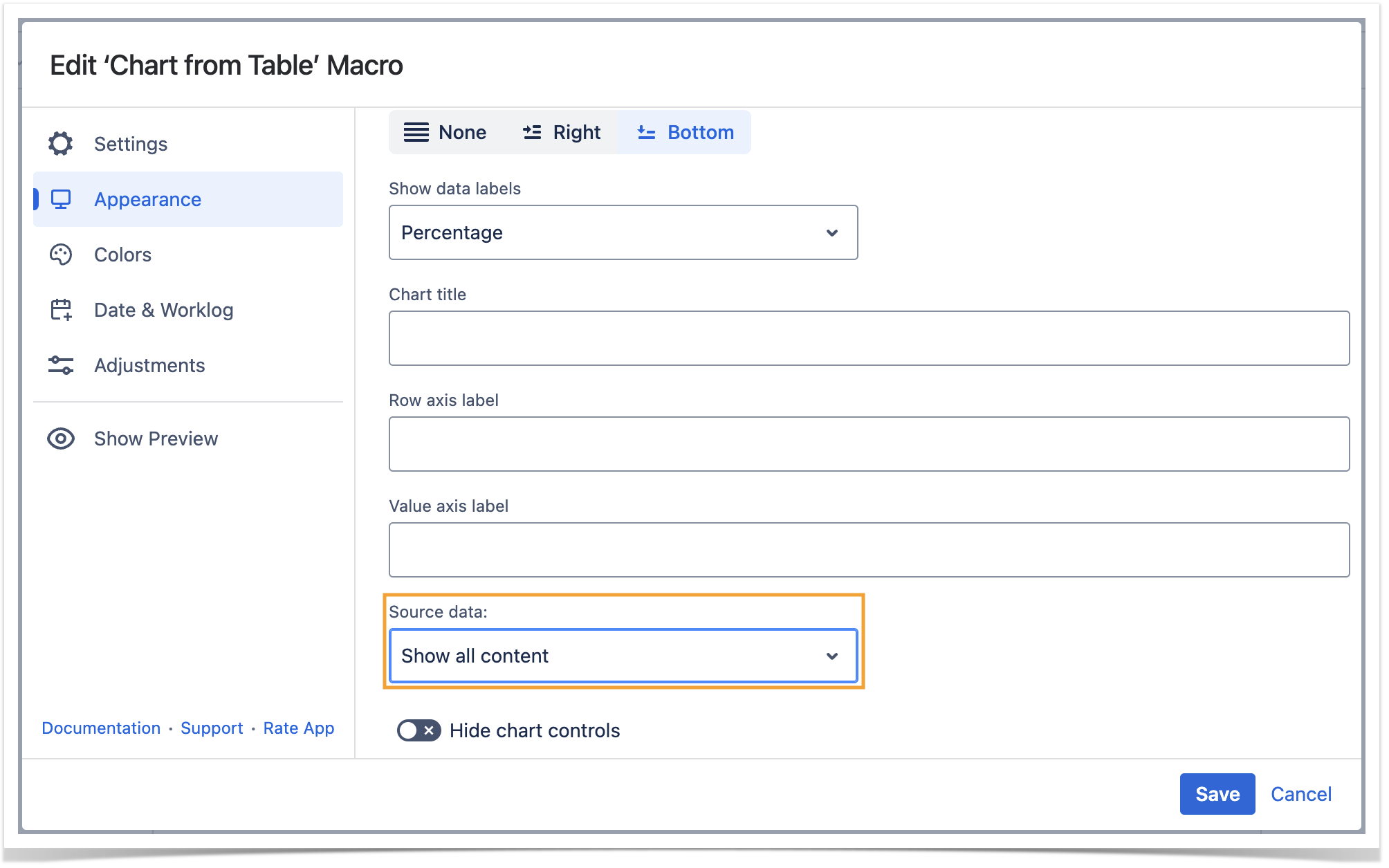

Show/Hide source data

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Locate the Source data option and select the appropriate option, as follows:

   • Show all content
   • Hide tables
   • Hide all content
4. Save the macro and the page.

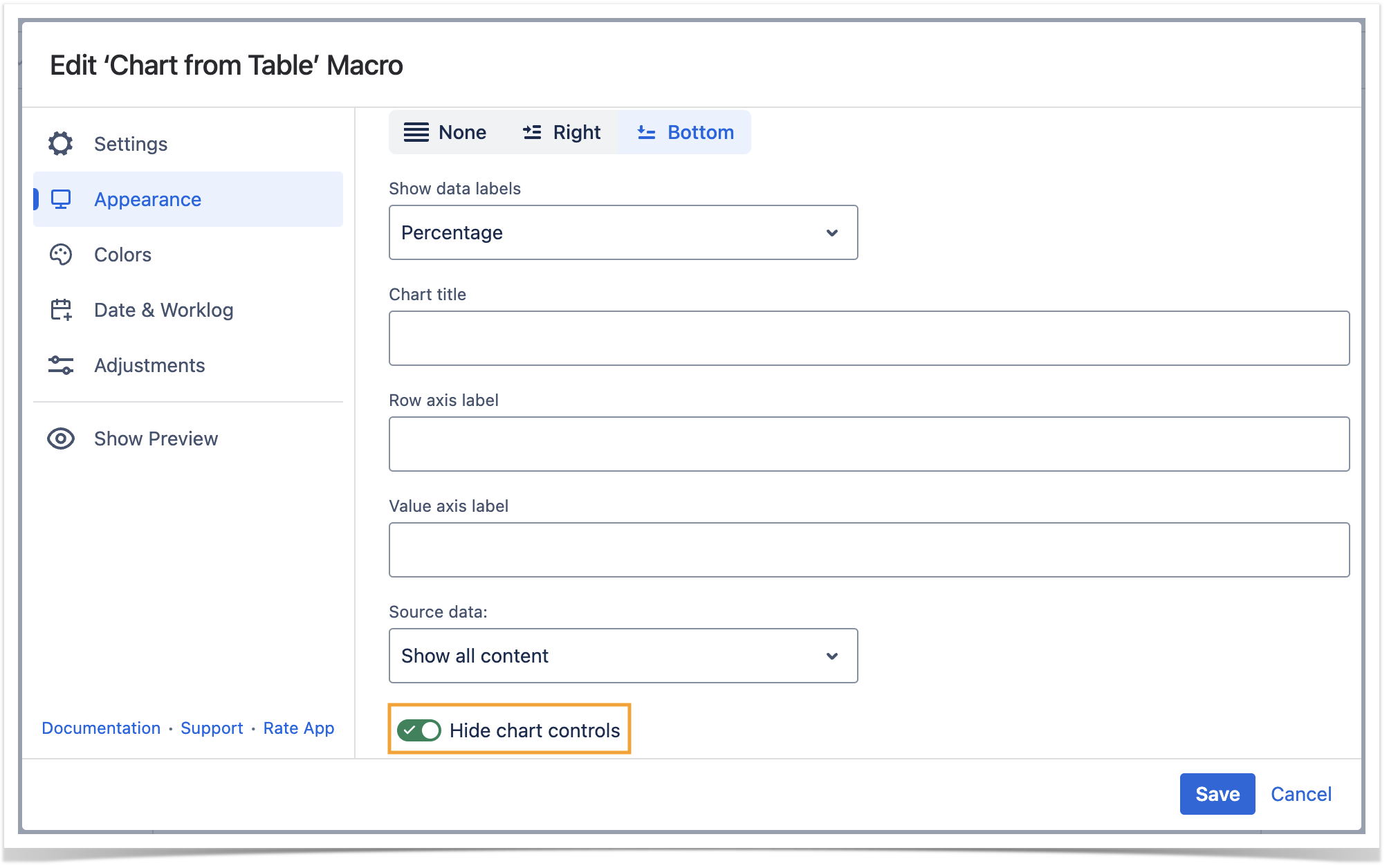

Hide chart controls

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate and enable the Hide chart controls option.
5. Save the macro and the page.

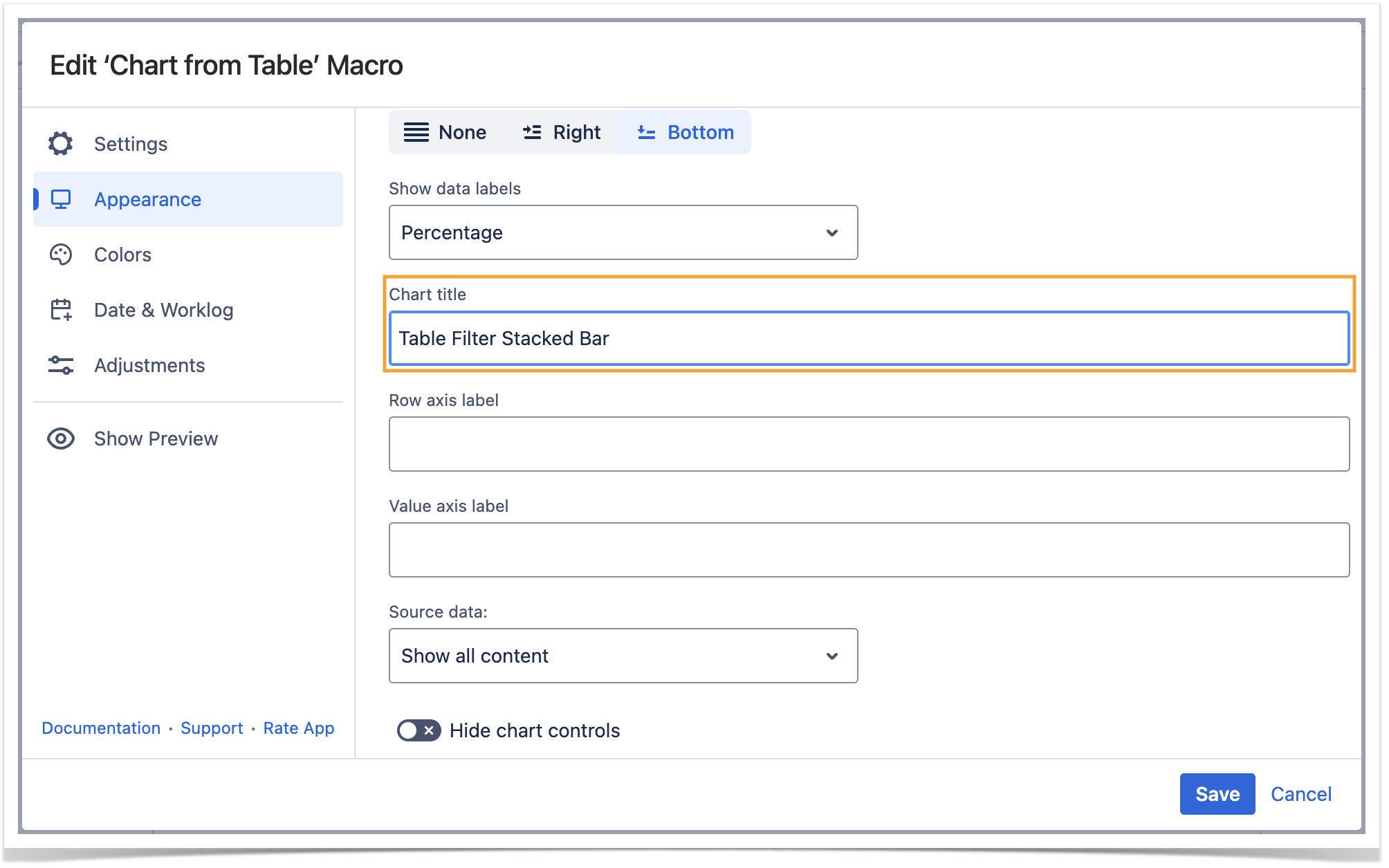

Set the chart title

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Chart title option and enter the title.
5. Save the macro and the page.

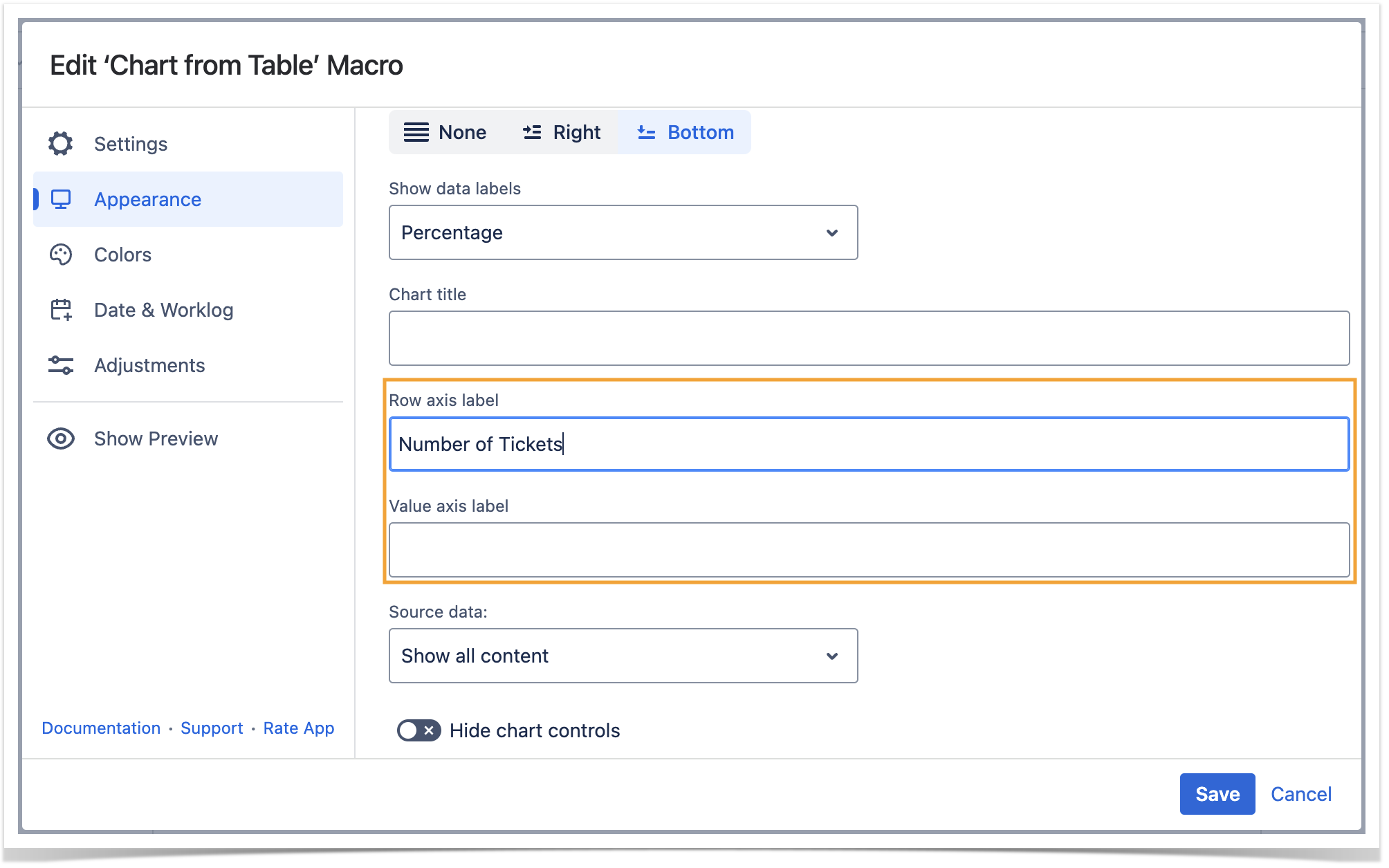

Set axis labels

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the  Row axis label  and  Value axis label  options and enter the labels.
5. Save the macro and the page.

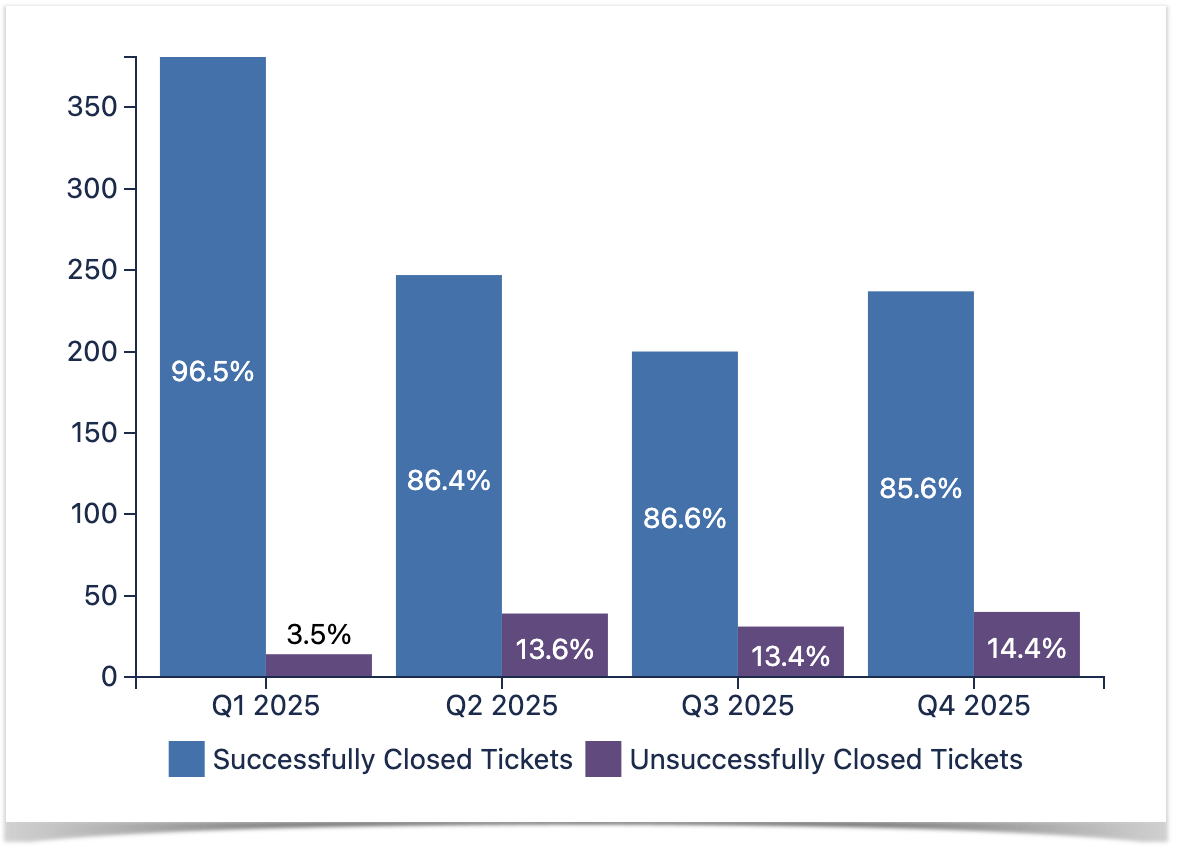

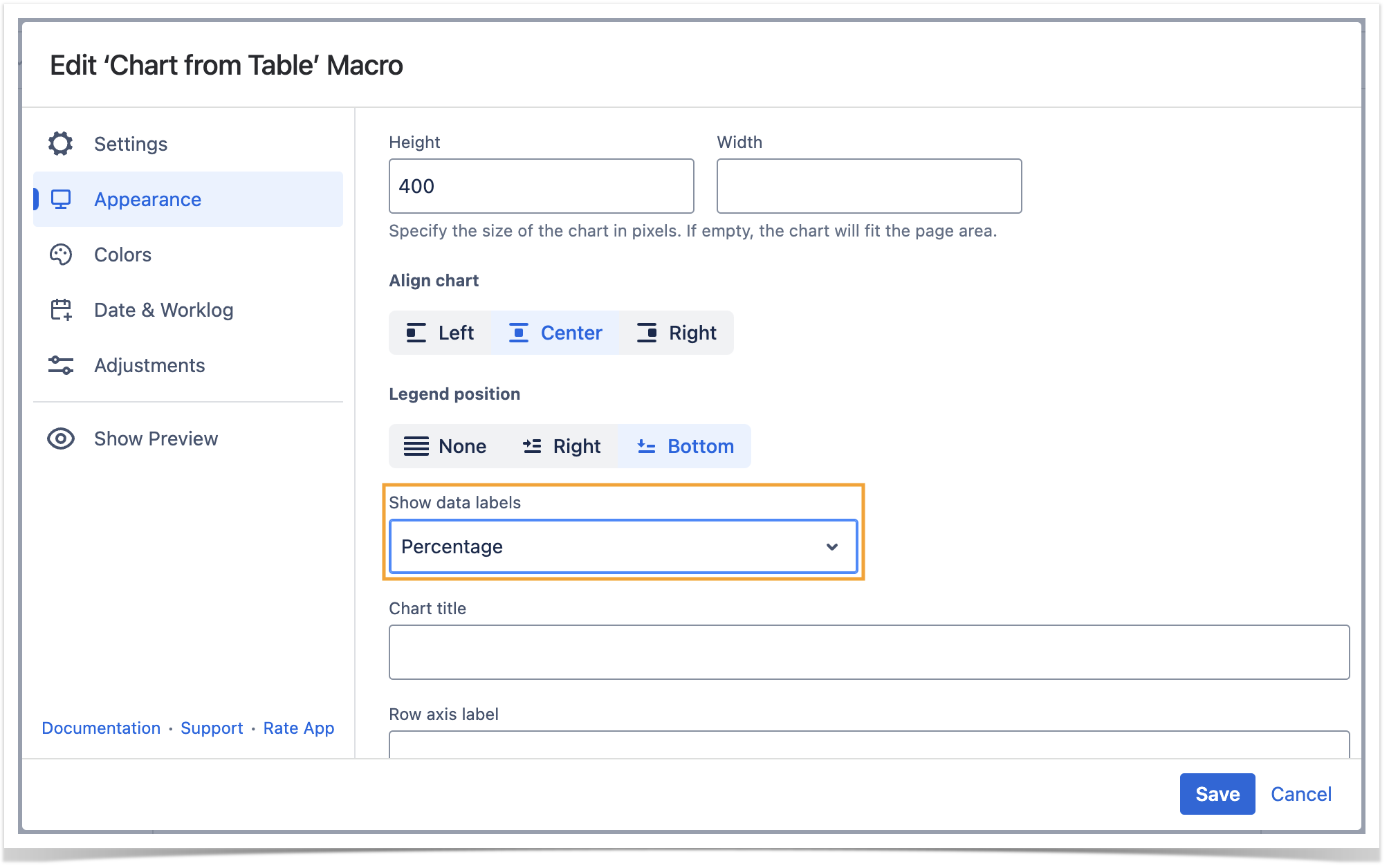

Show data labels

1. Switch the page to the edit mode.
2. Select the macro and click Edit.
3. Switch to the Look tab.
4. Locate the Show data labels option and select the appropriate option, as follows:
   • None
   • Value
   • Percentage
   • Value (Percentage)
   • Percentage (Value)
5. Save the macro and the page.

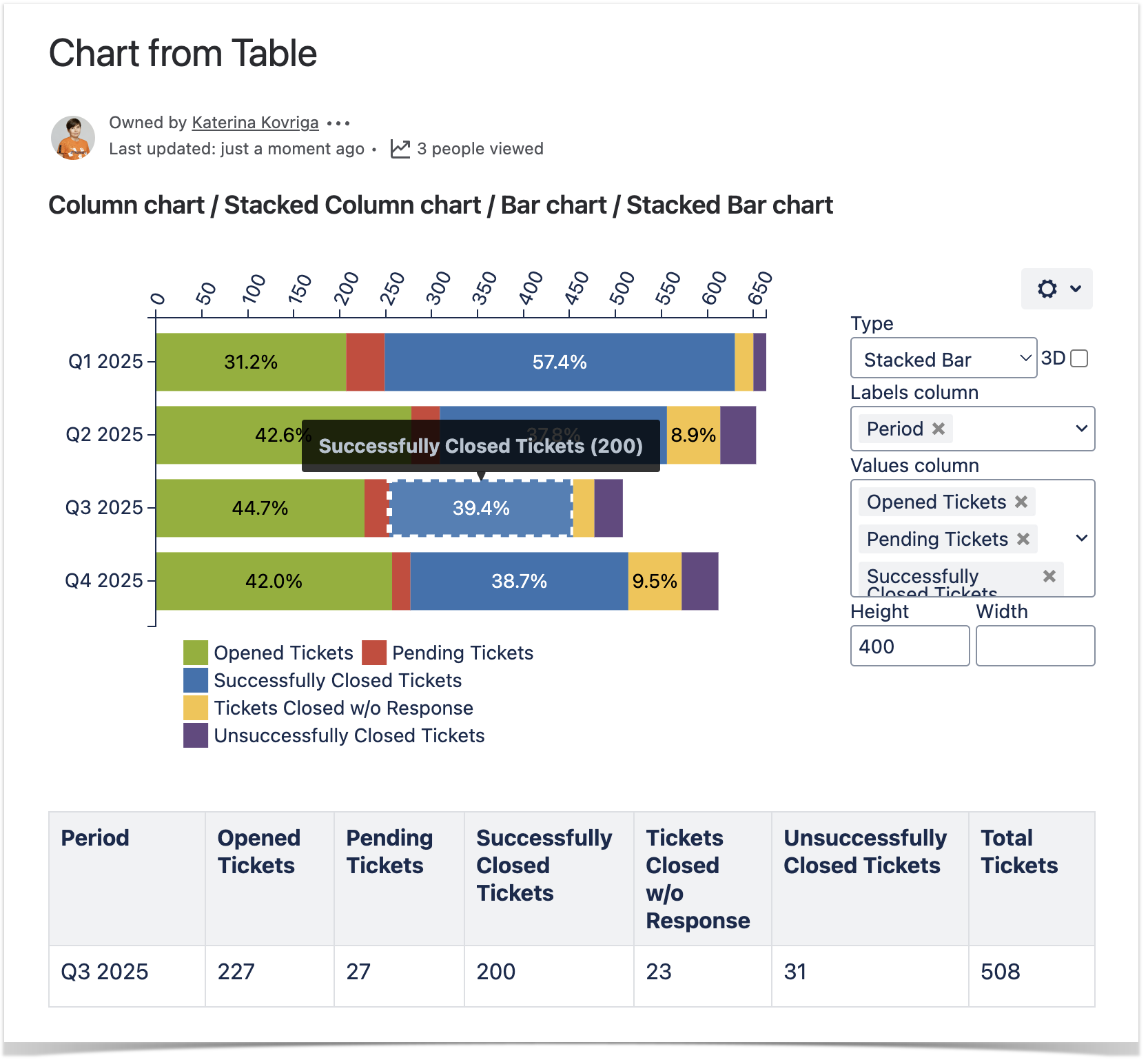

Filter the source table

1. Select one or more chart columns/sectors/bars.
2. Only the related rows of the source table are displayed.
3. Deselect all the columns/sectors/bars to display the whole source table.
